ISMAIL
KALE

Design & Development Engineer

considered, detail-oriented & multidisciplinary

PROJECTS

Click the Work Portfolio download button to download this gallery in .pdf format

'artius' Seismometer Docking Station
(Güralp Systems Ltd.)
²⁰²⁴

Sleek, laboratory-grade node seismometer docking station.
CNC Milled & Anodised Aluminium plate, stainless steel.
Industrial design, CAD/DFM, prototyping, testing.

Güralp launches Artius, a new medium-motion broadband seismic node for high density arrays

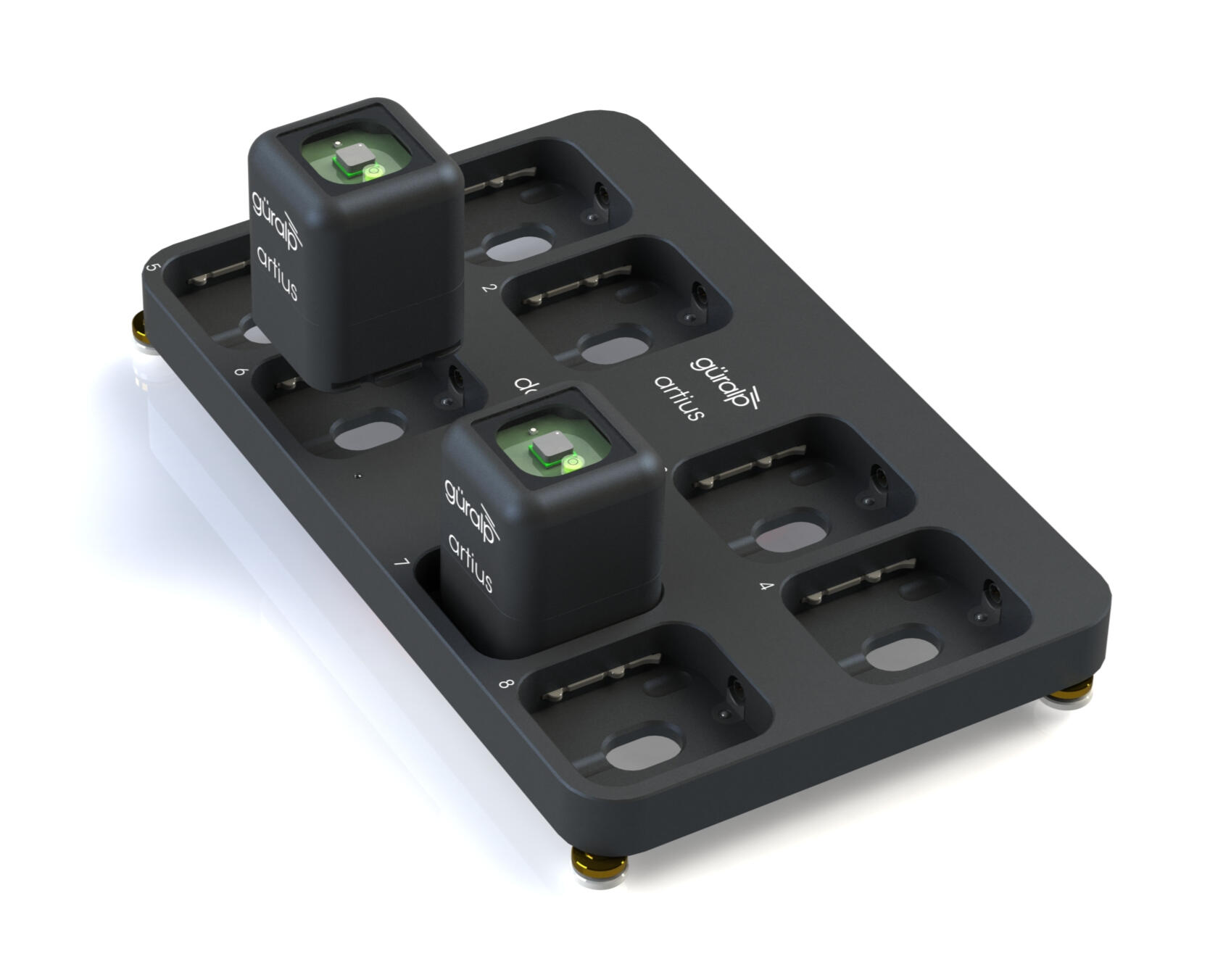

artius docking station main render

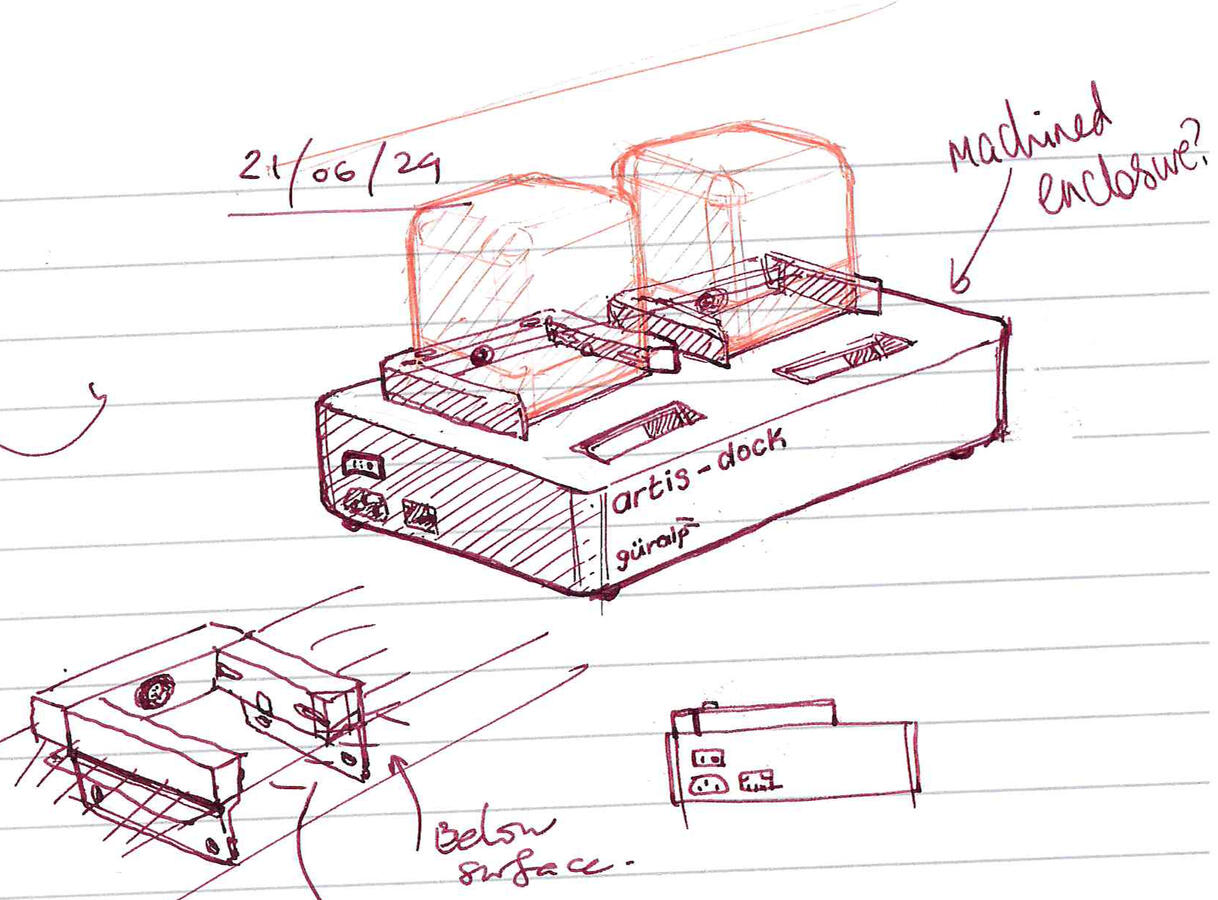

initial concepts
form 1
form 2
form 3

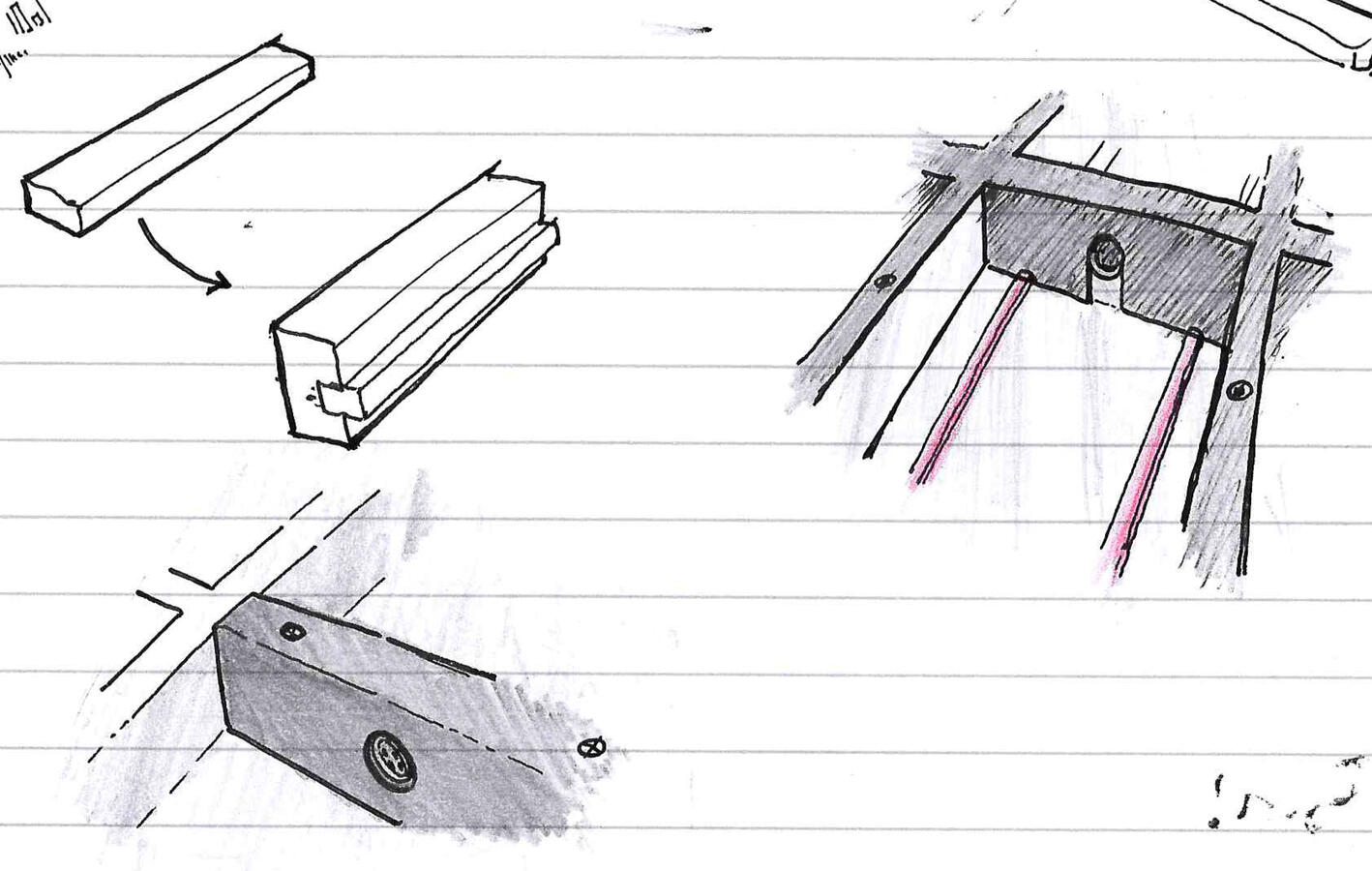

detail 1
detail 2
detail 3

Surface Storage Module for 'certimus'
(Güralp Systems Ltd.)
²⁰²⁴

Weatherproof, rugged external seismic data store.
CNC Milled & Anodised Aluminium, stainless steel.
Industrial design, CAD / DFM, prototyping, documentation, assembly, testing.

Güralp certimus product page

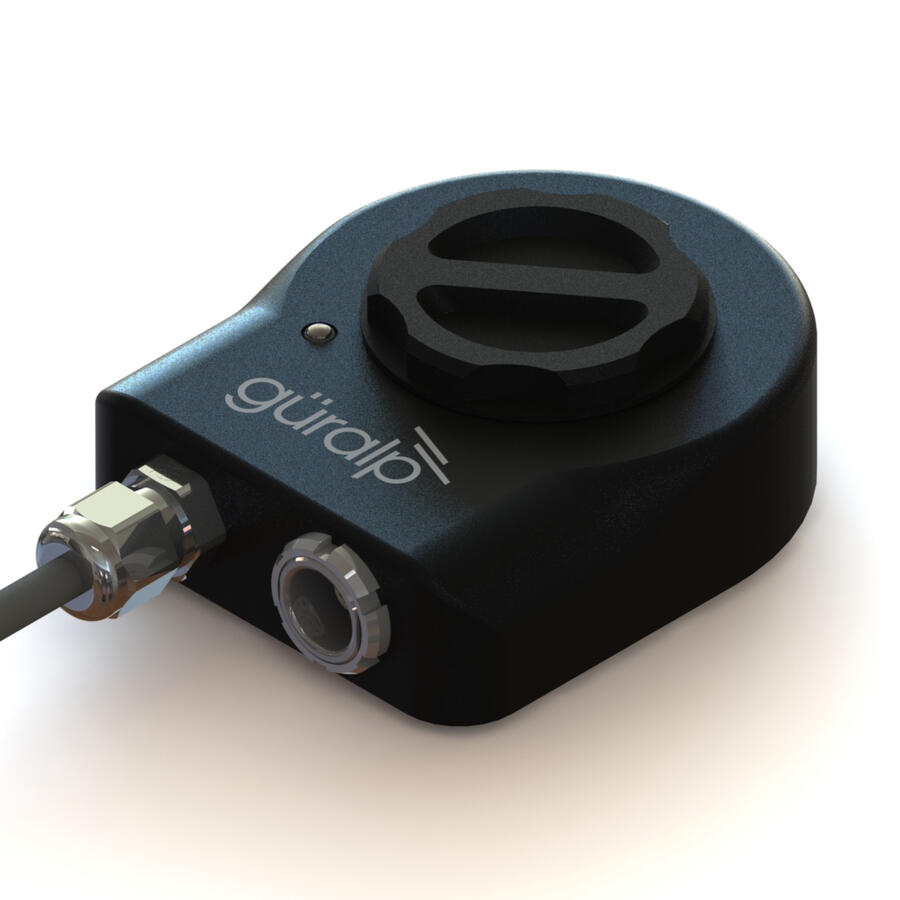

SSM main render

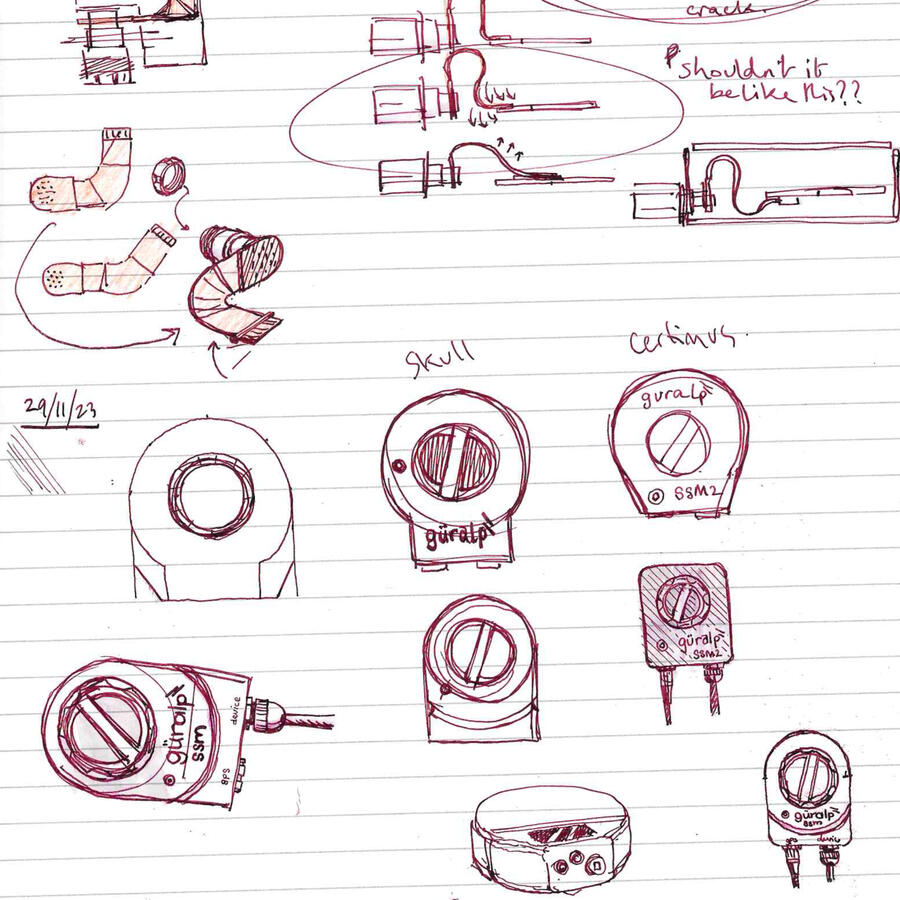

preliminary sketches

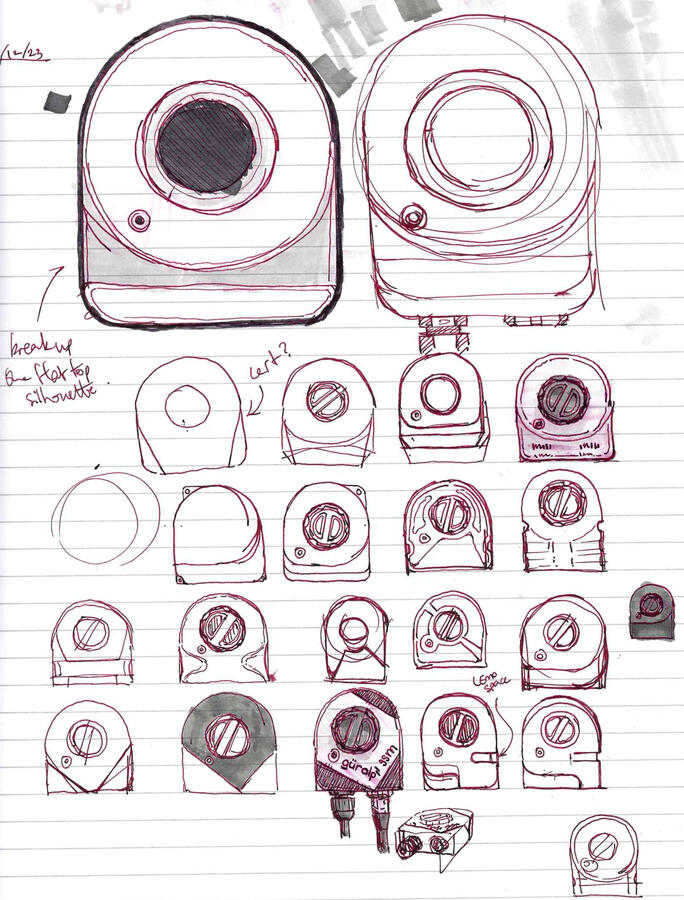

design development

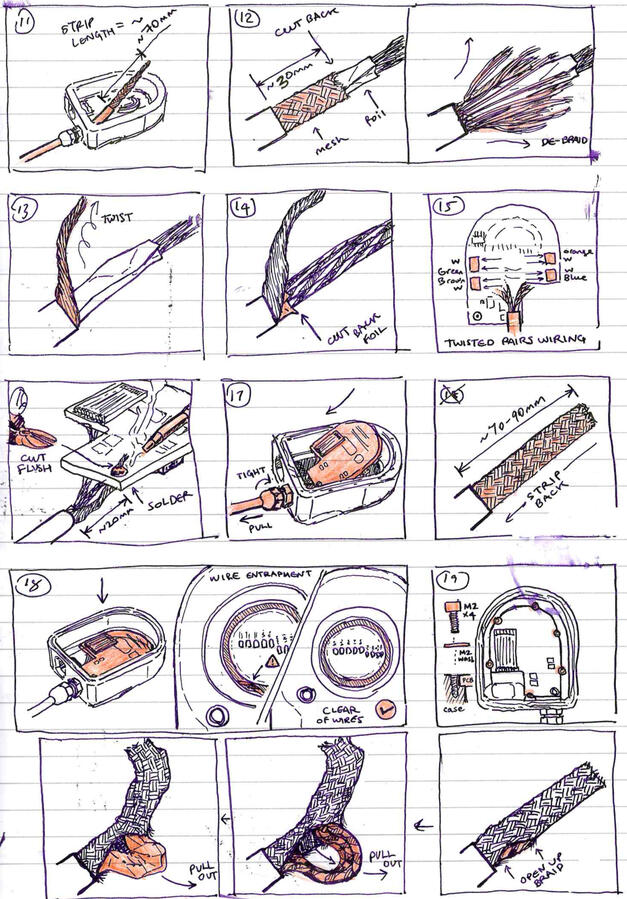

assembly instructions layout

Fibre Optic Cable Connector for 'Radian' Borehole Seismic Instrument
(Güralp Systems Ltd.)
²⁰²³

Pressure sealed connector for 100 - 2000m borehole seismic instrument fibre-optic and copper conductor cable system. Pressure rated up to 200bar and max. load 2000kg.
High precision lathe-turned parts. 316 stainless steel, ceramic, brass.
Industrial design, prototyping, CAD / DFM, GD&T, documentation, assembly, testing.

Güralp Radian product page

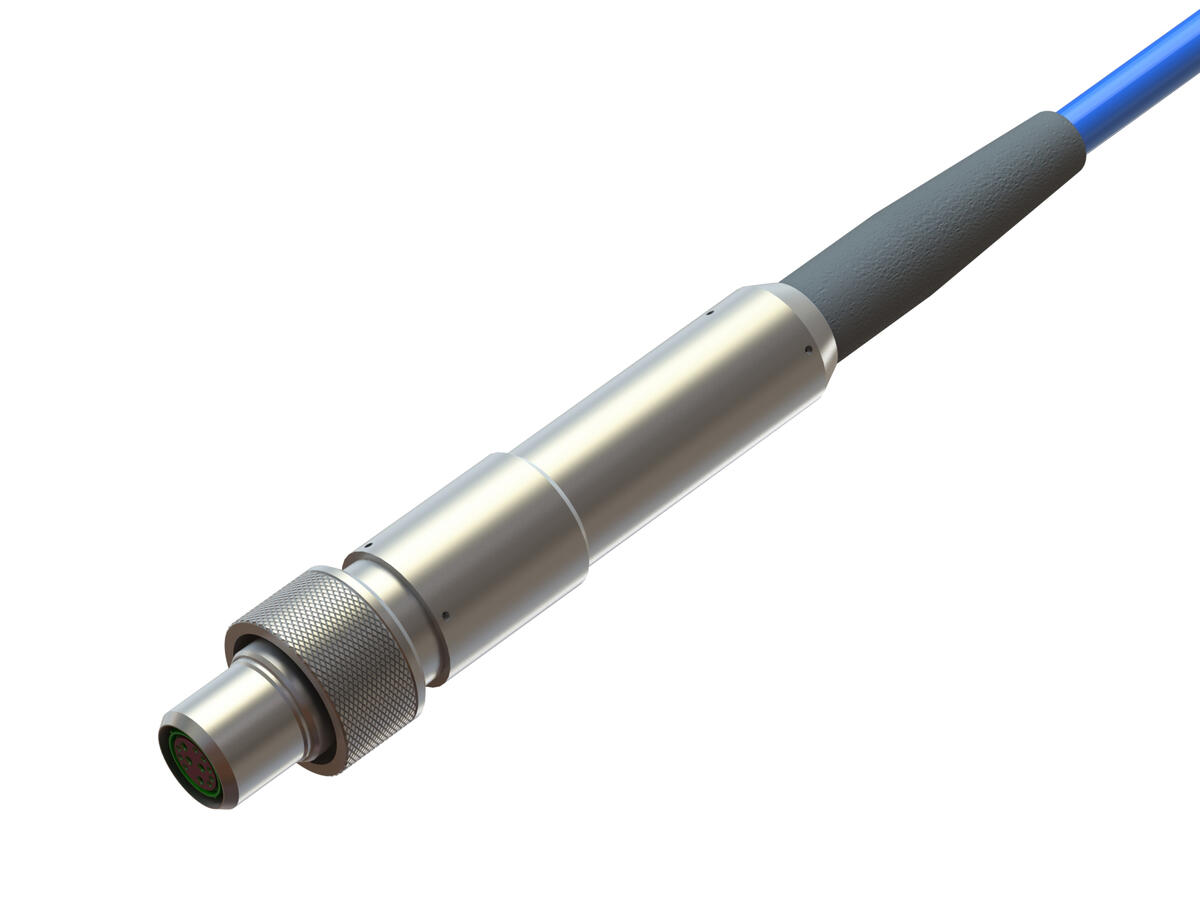

Radian Connector main render

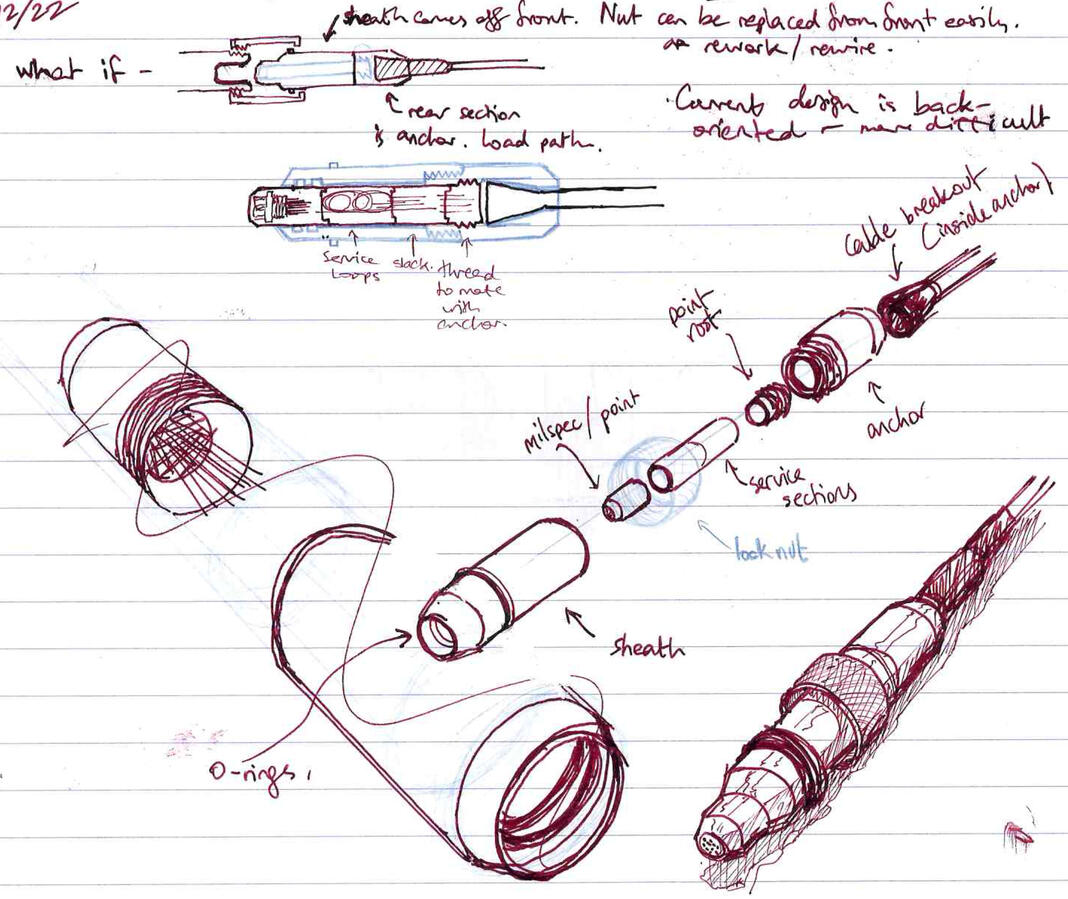

initial ideas

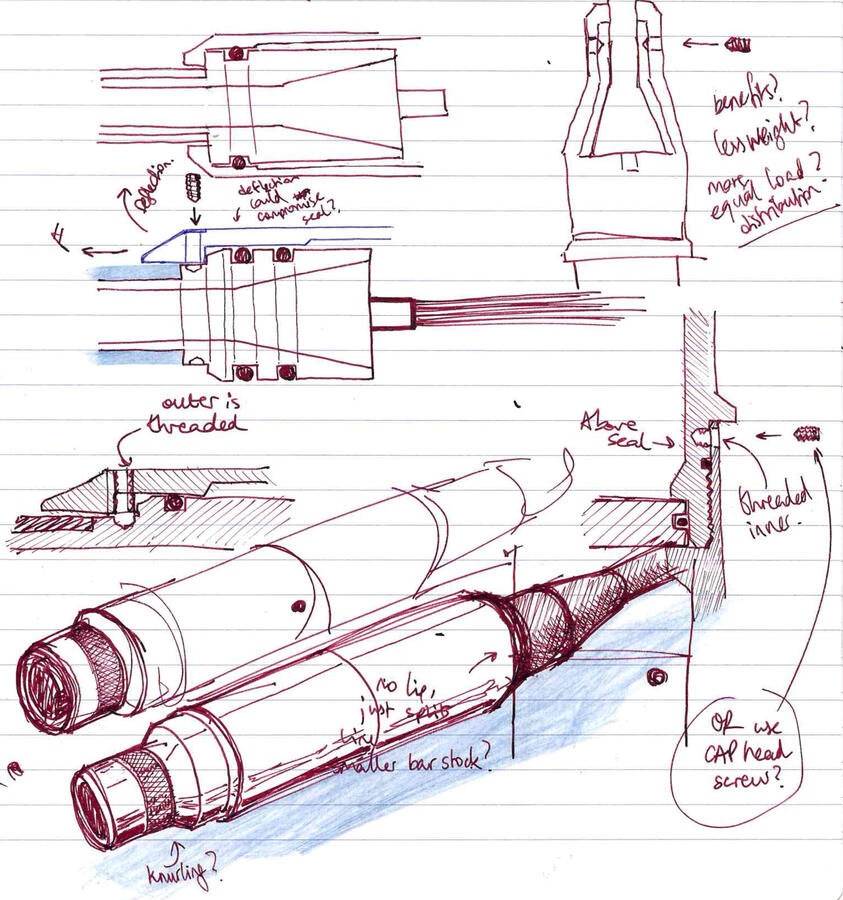

rotation locking thoughts

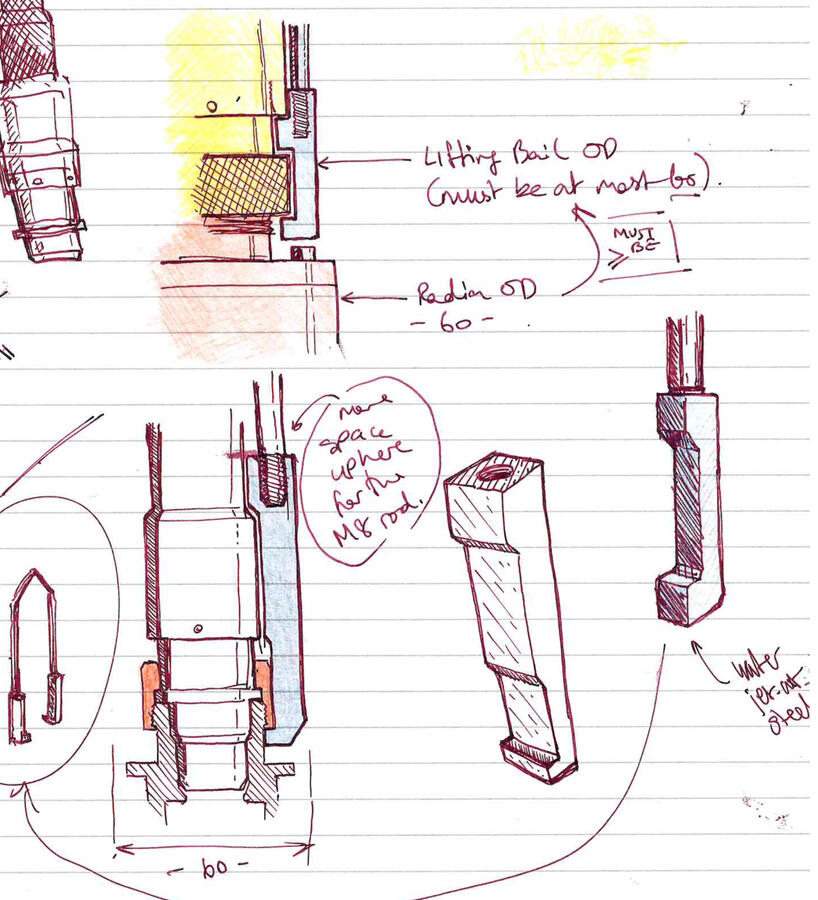

lifting bails 1
lifting bails 2

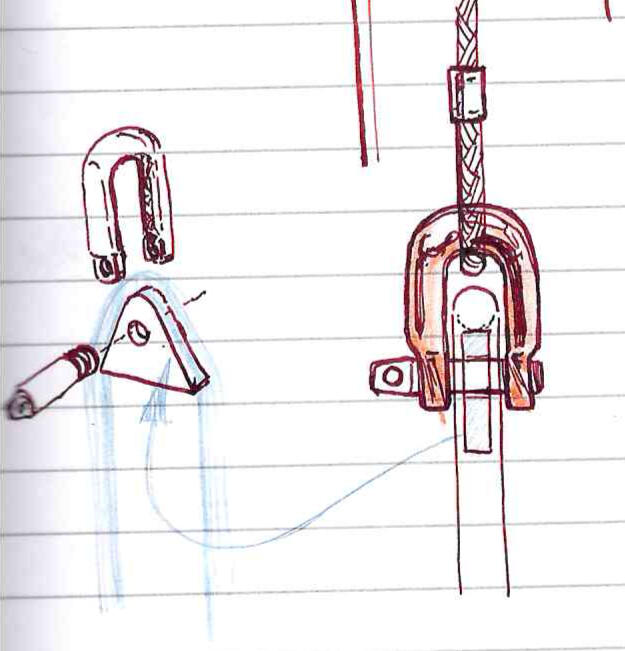

lifting bails 3

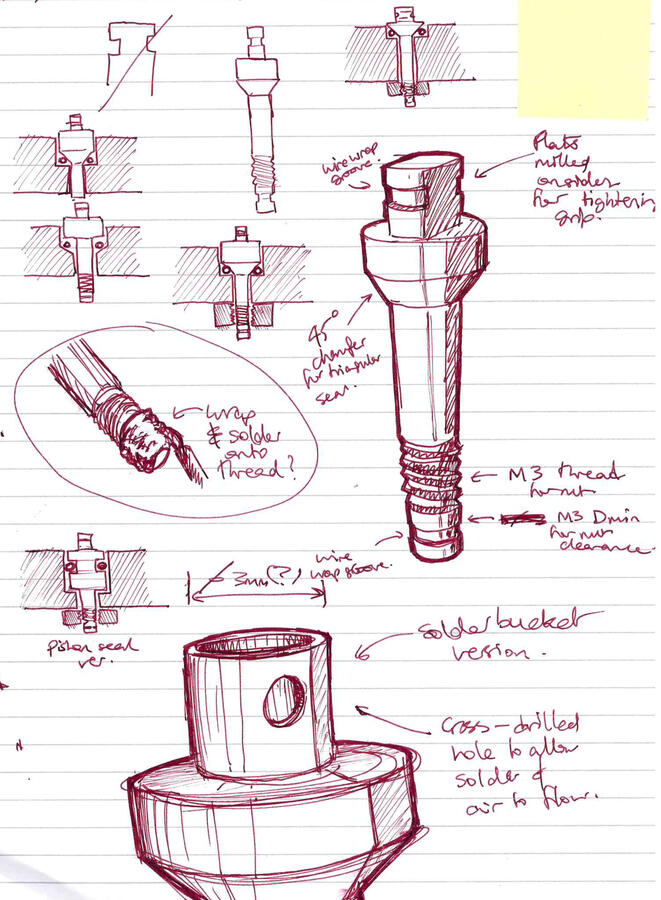

turned solder pin
glue jig

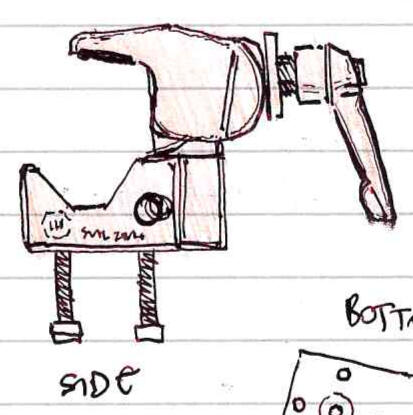

clamp

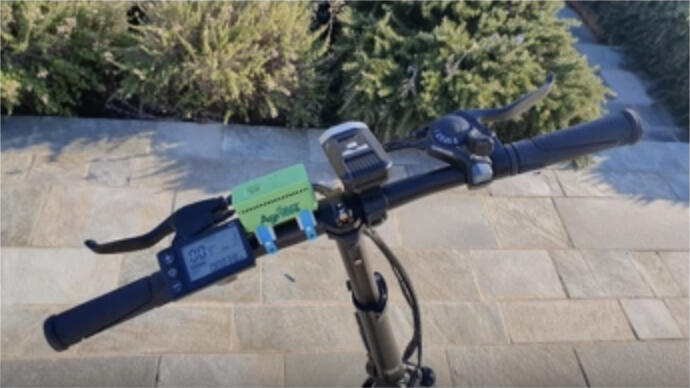

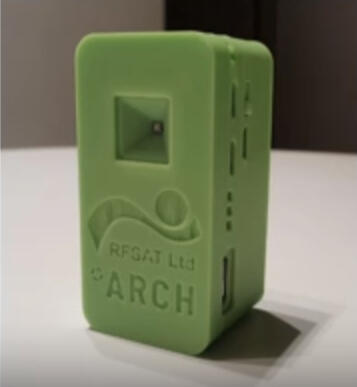

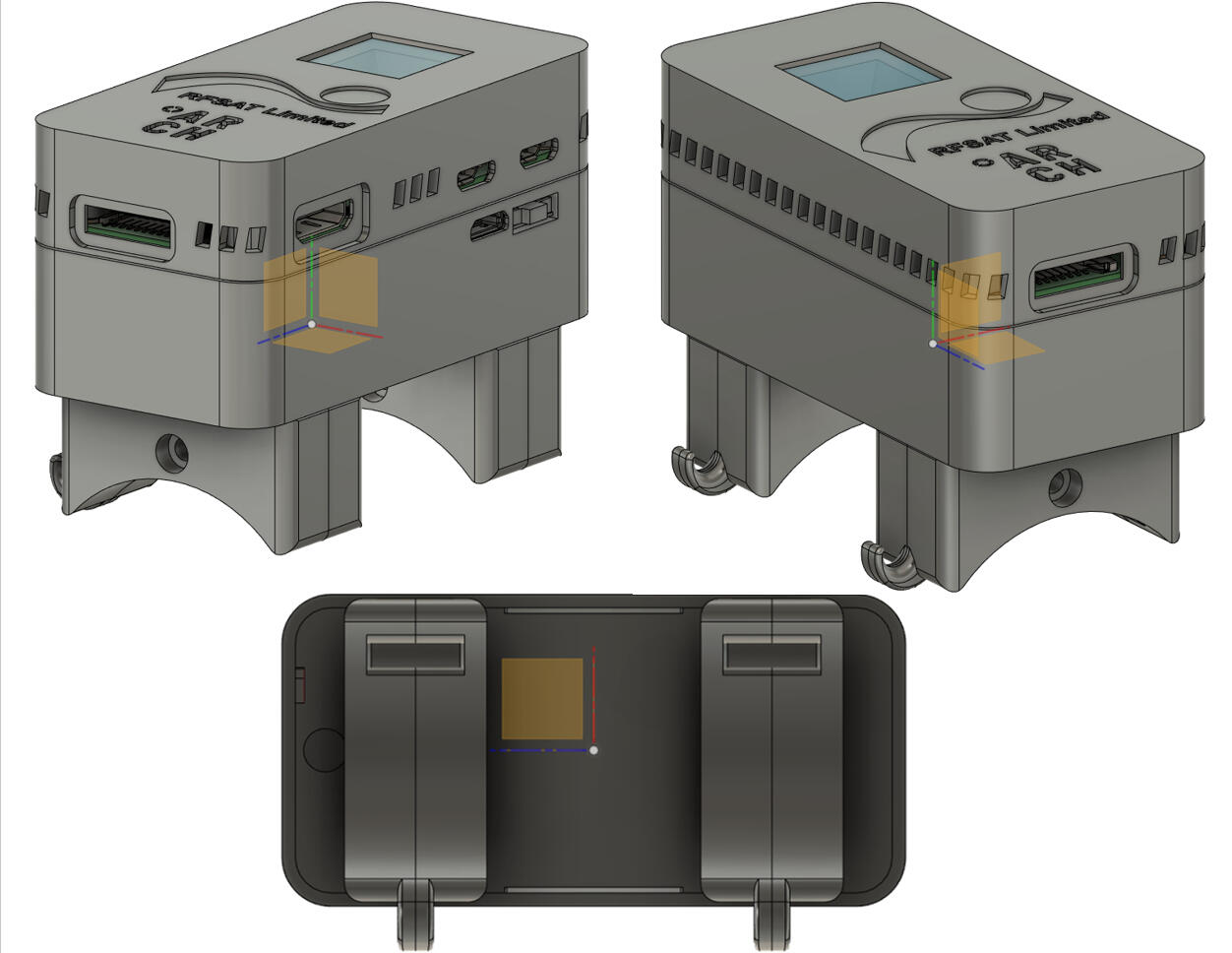

Bike-Mounted Environmental Sensor
(Freelance - RFSAT Systems Ltd.)
²⁰²²

Battery-powered, rain-proof environmental sensor.
Industrial design, CAD, prototyping and manufacturing (batch of 10 3D-printed enclosures), and shipping to client.
